Digital HVAC Manifold Gauge Set, Digital AC Gauges with 3 Hoses, 2 Temperature Clamps, and 2 Anti-Freeze Safety Valves, HVAC Gauges Compatible with R134A R410A R454B, R32 and 88 other refrigerants
US$60.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by guiadoaprendiz.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$60.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by guiadoaprendiz.com
Free 30-day returns Details
Product details
| Management number | 237493264 | Release Date | 2026/07/10 | List Price | US$60.00 | Model Number | 237493264 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ✅【3-in1 Professional HVAC Tool】 This digital manifold gauge combines PT mode for pressure/temperature monitoring and refrigerant charging, HP mode for pressure leak testing with programmable hold time, and VAC mode for vacuum measurement. PT mode calculates superheat and subcooling directly. HP mode supports up to 24-hour leak tests with temperature-compensated pressure. VAC mode displays vacuum percentage and pressure value, meeting all installation, servicing, evacuation, and leak detection needs.
- ✅【High Accuracy & Broad Refrigerant Compatibility】Achieves ±0.5% FS pressure accuracy (-14.5 to 800 psi) and ±0.9°F temperature accuracy (-58°F to 302°F). Supports 88 NIST-standard refrigerants, including R134A, R410A, R32, R454B, and flammable types like R290. Features an automatic flammable refrigerant warning icon for A2L and above, ensuring safe operation with next-generation low-GWP refrigerants.
- ✅【Smart Leak Test with Temperature Compensation】The HP mode integrates an internal temperature sensor to compensate pressure readings during pressure hold tests, eliminating false leak indications caused by ambient temperature changes. Users can set hold times from 30 minutes to 24 hours in 30-minute steps. The screen simultaneously displays initial pressure, real-time pressure, and temperature-compensated pressure, with results locked automatically upon test completion.

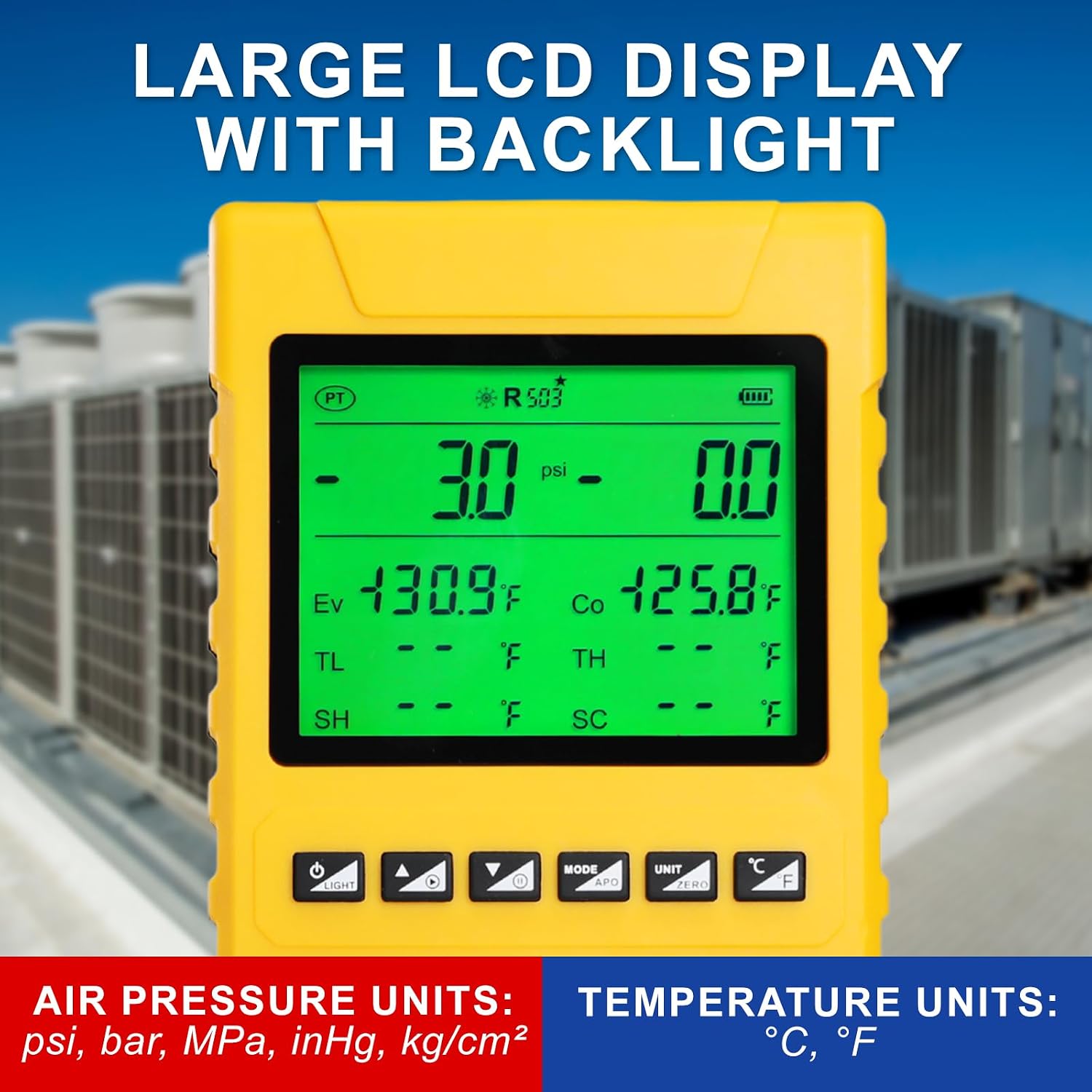

- ✅【User-Friendly Interface & Safety】The Digital AC Gauges features a large backlit LCD for clear reading in low-light conditions. Supports one-key pressure zeroing, multiple pressure units (psi, bar, MPa, inHg, kg/cm²), and temperature units (°C/°F). Auto power-off (APO) activates after 15 minutes of inactivity to conserve battery life. Provides clear error codes (E01, E02, NCAL, NOCELL) with troubleshooting guidance for quick problem resolution.

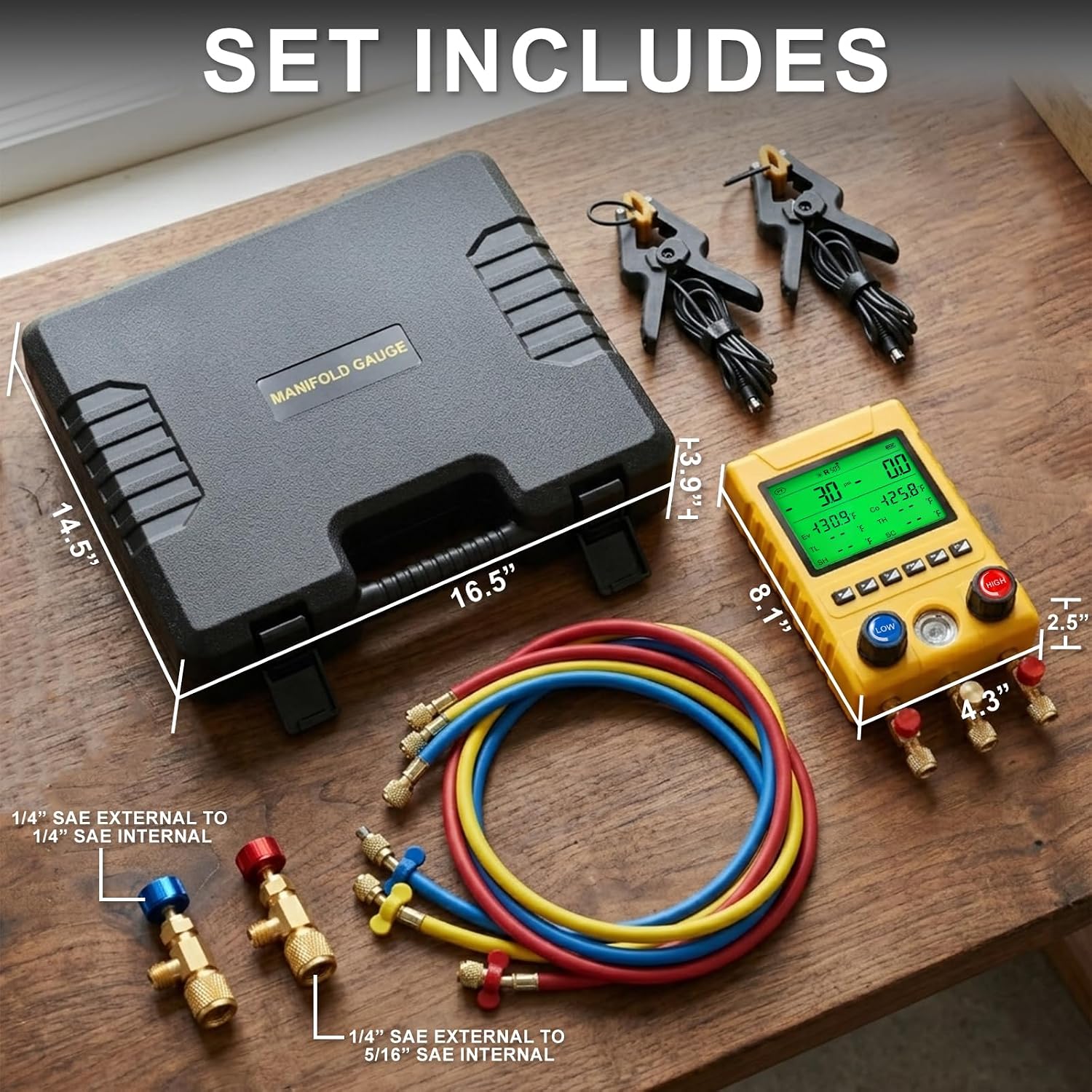

- ✅【Durable Construction & Complete Accessories】Built with high-strength engineering plastic and reliable valve block design. Includes three 1/4 SAE hoses, two temperature clamps, two anti-freeze safety valves(1/4"-1/4" and 1/4"-5/16"), and a durable carrying case. A foldable hook allows hands-free hanging on job sites. Temperature clamps measure suction and liquid line temperatures in real time, enabling direct superheat and subcooling calculation in PT mode.
| ASIN | B0H2CWZ23R |
|---|---|
| Brand | DANOPLUS |
| Model | Manifold Gauge Set |
| Batteries | 3 AA batteries required. (included) |
| Item Weight | 8.38 pounds |
| Manufacturer | DANOPLUS |
| Item model number | DP-549 |
| Package Dimensions | 16.93 x 14.96 x 3.7 inches |
| Manufacturer Part Number | DP-549 |
